Description

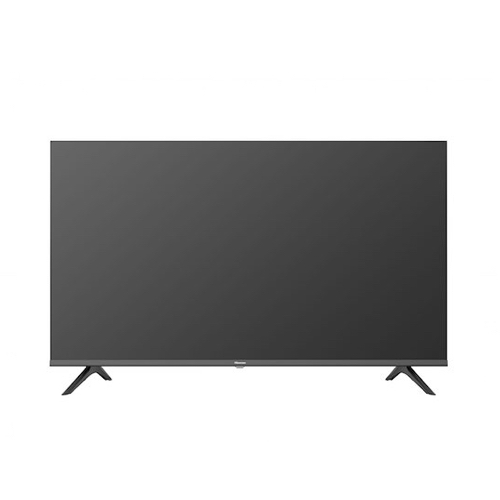

Specifications:

Display Type LCD / LED lit
Screen Size (diagonal) 32 inches
Resolution 1366 x 768
Dimensions (W x H x D) With stand: 717 × 469 × 160mm, Without stand: 717 × 427 × 86mm

FULL SPECS
Image Display

Panel Manufacturer BOE
Active Display Area, Horizontal Dimension 697,685mm
Active Display Area, Vertical Dimension 392,256mm
Screen Size (Rounded to nearest integer) 80cm
Screen Size (Rounded to nearest integer) 32inch
Display Technology LCD / LED lit
Backlight Source LED Matrix
Resolution (Horiz x Vert) 1366 x 768pixel
Screen Curvature Radius -mm
Colour Depth 8bit
Image Refresh Frequency 60Hz
Smooth Motion Rate 120
3D Image –
Maximum Brightness of White 300cd / m2
Native Contrast Ratio 3000:1
Viewing Angle (Horiz / Vert) 178 / 178 Degrees
Quantum Dot No
Wide Colour Gamut No
UHD Premium No
Response Time 6,5ms

Connectivity

RF- Radio Frequency Input 1
AV Input 1
AV Output 0
USB Interface Type 3.0 (Qty / List….) 0
USB Interface Type 2.0 (Qty / List ….) 2 / USB 1, USB 2
Optical Digital Audio Output (SPDIF) 1
Earphone Jack 1

HDMI Ports

HDMI Inputs 2
HDMI Type 4K@60Hz with HDCP Version 2.2 N/A
HDMI Type 1.4 with HDCP Version 1.4 HDMI 1, HDMI 2
HDMI 2.0 Compliant Input N/A
ARC – Audio Return Channel HDMI 1
MHL – Mobile High Definition Link Input N/A
CEC – Consumer Electronics Control via HDMI Yes

Smart TV

Ethernet Port (RJ45 Connector) 0
Wi-Fi Protocols IEEE 802.11 {b, g, n, ac, ad, ..} No
Wi-Fi Bands No GHz
DLNA Compliance No
Bluetooth / BT Version No
Anyview (Screen mirroring) No
UHD (4k) Streaming No
Installed Applications {List ……} No
Installed Applications {List ……} No
Skype No
Freeview Plus – HbbTV 2.0 No
Web Browser [Chrome | Opera | Other] No

Digital TV Reception

Television System (DVB-T / DVB-T2) Yes / Yes
Video Decoder (MPEG2 / MPEG 4) Yes / Yes
AC3 Surround Sound Decoder Yes
AS 4599.1 Compliance No
AS 4933.1 Compliance No
LCN- Logical Channel Number and DTV Service Name Support No
Teletext / Teletext Signal Interruption (TAB Compliant) / 16:9 TLTX No
Subtitles Yes
RF Signal Strength Indicator No
RF Signal Quality Indicator No
RF Bit Error Rate Indicator No
EPG – Electronic Programming Guide, 7 Days for All Services No
Audio Description (Vision Impairment Aid) No
Parental Rating Lock No

Analogue TV Reception

Colour – Sound Systems in VHF Band PAL B
Colour – Sound Systems in UHF Band PAL B
Stereo Sound Decoder {A2, Nicam, ….}
NICAM
Teletext / Teletext Signal Interruption (TAB Compliant) / 16:9 TLTX No
Subtitles Yes

Image Processing

Backlight Control No
Light Sensing No
Dynamic Backlight Control No
Local Dimming / Controllable Zones No
Zoom Function Settings (4:3 / 16:9 / Auto / Zoom 1 / Zoom 2) Yes / Yes / Yes / No / No
1:1 Pixel Mapping No
HDR – High Dynamic Range for Luminance (DMP / Netflix / HDMI) No / No / No
HDR System (HDR10 / Dolby Vision) No /No
HLG (Hybrid Log-Gamma) for HDR No
HEVC (H.265) Decoder No
Dual Image (PIP / POP) No / No
Motion Enhancement and Compensation (MEMC) No

Sound

Audio Power Output per Channel 6 Watt
Number of Speakers (Tweeter / Midrange / Woofer) 0 / 1 / 0
Automatic Volume Level (AVL) Yes
Audio Equalizer Yes
Dolby Digital Yes
Audio Enhancement – Type {SRS, BBE, SAP, DBX-TV….} No
Lip – Sync Adjustment No

Features

On / Off Timer Yes
Power Off if No Signal Yes
Sleep Timer Yes
Program Lock Yes
OSD Transparency Control No
User Interface Linux
Software Version OSD Indication Yes
Legal Requirements: Disclaimer / Acceptance of Terms Yes / Yes
Favourite Channels List Yes
Electronic Point of Sales (E-POS) No
OTA – Over the Air Software Updates No
Voice Command No
Screen Mirroring {Miracast, Anyview Cast, …} No
Smartphone Remote Control Application {Remote Now, …} No
Replaceable Demo Video for Store Mode No
Remote Control via Serial Port No

USB Media Player

Personal Video Recorder Yes
Time Shift Yes
DTV Recording (EPG Scheduling / Start from Standby) Yes / Yes
DivX Decoder No
MPEG4 (H.264) / H.265 Decoder No / No
DMP – Digital Media Player Content (Music / Video / Photos / Text) Yes / Yes / Yes / No
DMP Auto – Play No
DMP for UHD Content via USB No
DMP File Allocation Table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes
PVR File Allocation Table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes

Hotel Lock

Protected Hotel Lock Submenu (Password / Fixed Code) No / Yes
Clone Function for Programs, Sound and Image Settings No
Sub-Menu Lock, Including Tuning Lock Yes
Keyboard Lock No
Maximum Volume Lock Yes
Power On Volume Yes
Power On, Apply Default Sound / Image Settings Yes
Power On Source Selection Yes
Power On RF Channel Selection Yes
Power On Mode (On / Standby / Last) Yes / Yes / Yes
Inputs Access (Enable / Disable) Yes

Hardware

Processor / Cores MSD3663LSAT – SW
Dual Tuner No
Colour (Front Bezel, Rear, Stand) Black / Black / Black
Speakers Mounted in Enclosure No
Mains Power Switch No
Swivel Base No
Compact Packaging Yes
Supply Range [Voltage / Frequency] 100 ~ 240V / 50, 60Hz Volt / Hz
Standby Consumption < 0.5Watt
Maximum Time Delay Power On to Sound an Image sec

Installation

Stand Area (Width / Depth) 671 × 160mm
Wall Mount Dimensions (Horiz x Vert) 100 x 200mm
Wall Mount, Screw Thread M6mm
VESA Compliance Yes
Detachable Power Cord No
Power Cord Length 155cm

Accessories

Remote Controller (Technology / Part number) IR / ER-22601A
Battery (Size / Quantity) AAA / 2
User Manual (Available Online) / Quick Setup Guide (Print) 1 / 1
Warranty [In User Manual | In Separate Sheet] In separate sheet

Dimensions

Dimensions with Stand (WxHxD) 717 × 469 × 160mm
Dimensions without Stand (WxHxD) 717 × 427 × 86mm
Carton Box Dimensions (WxHxD) 811 × 515 × 129mm
Net Weight (with Stand / without Stand) 3.6 / 3.7kg
Gross Weight 5,5kg

Licensing and Certification

EMC – Electromagnetic Compatibility Yes
CB – Electrical Safety Yes
HDMI No
Dolby Digital Yes
ROHS No
